ROTATIVE DRUM ABRASION

ITEM 48

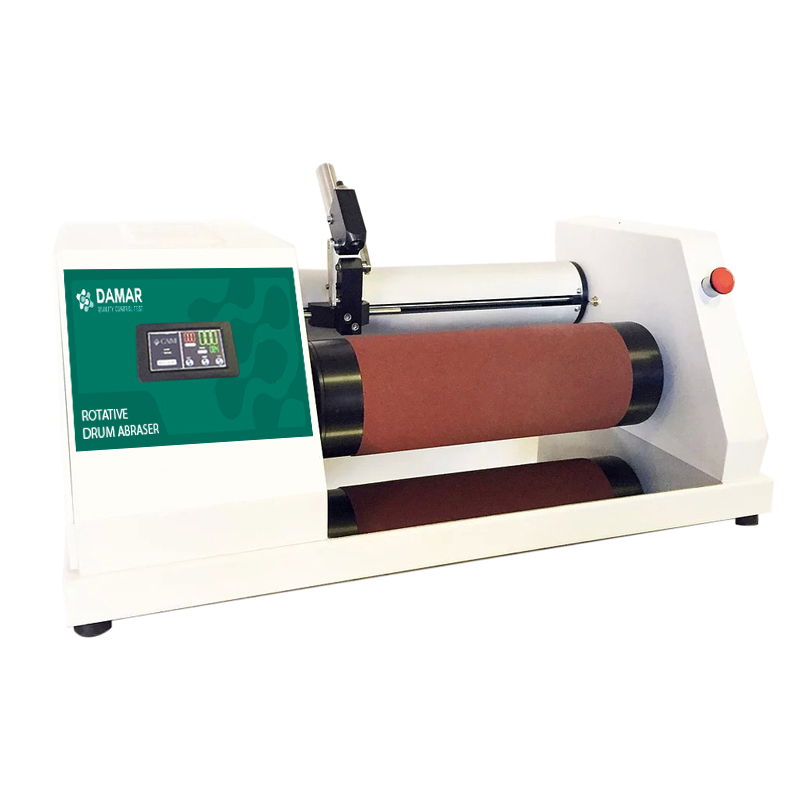

Abrasion tester to check the abrasion resistance of rubber, leather and similar soles used in the footwear industry.

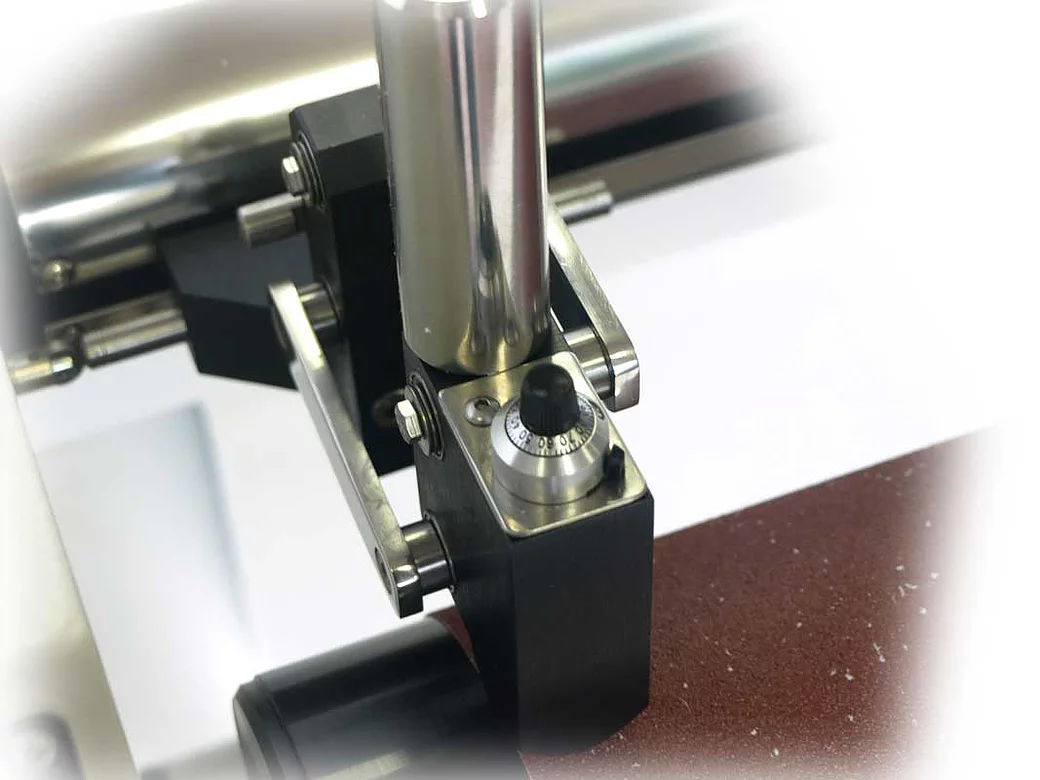

The sample is positioned inside a specific carrier which will be placed upon a rotating drum, previuosly dressed with standard abrasion paper.

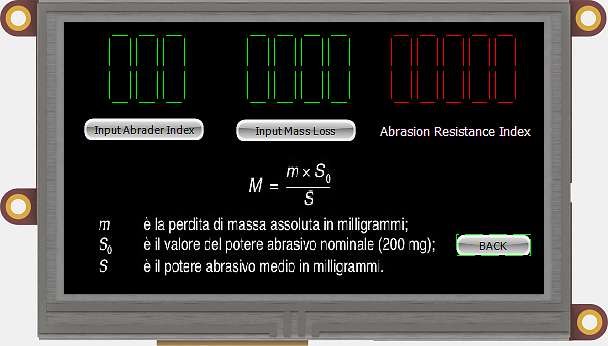

The operator will take note of the sample weight before and after test, to check wight loss and adopt such parameter to calculate abrasion resistance thanks to a specific phormula, dictated by the standard.

INTERNATIONAL STANDARDS: EN ISO 20344, EN 344, ISO 4649, UNI 9185, UNI 8615, DIN 53.516, BS903, etc.

DIMENSIONS: 1100 X 500X 500MM
WEIGTH: 55Kg
POWER SUPPLY: 220-50Hz
