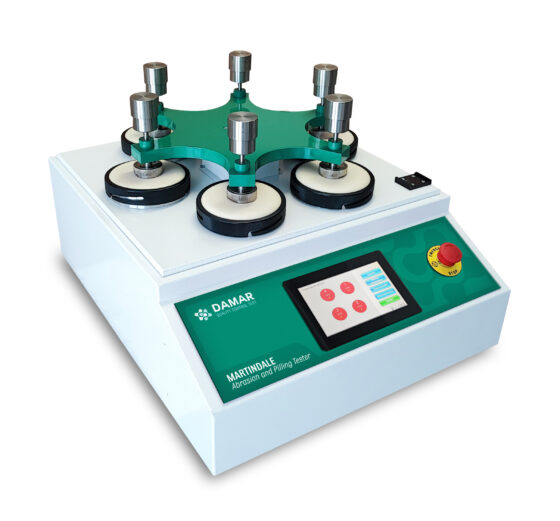

MARTINDALE ABRASION & PILLING TEST FOR LEATHER AND FABRIC

ITEM 47A

Instrument for abrasion and pilling resistance tests on fabric, leather and other materials.
The consumption degree is determined by rubbing (translational movement that traces a figure called Lissajous) it against a standard abradent fabric, while the pilling formation by rubbing two pieces of manufactured product against each other.
Possibility to perform 3 types of tests: abrasion, pilling, linear wear (on request).

Complete with two sets of weights of 9 and 12kpa.

INTERNATIONAL STANDARDS: UNI EN ISO 12945-2, UNI EN ISO 12947 – 1/2/3/4, ASTM D4966 (Abrasione), EN 13520, 13515ASTM D 4970 (Pilling), IWS TM 196-112, SN 198529, JIS L1018, BS 5690, BS 3424 Part 24 (metodo 27A), DIN 53863, DIN 53865, IS 12673, IWS TM 112, IWS TM 196, etc.

MODEL	1 PLACE	4 PLACES	6 PLACES	9 PLACES
HEAD LIFT	Manual	Manual or Pneumatic	Manual or Pneumatic	Manual
DIMENSIONS	340X520X300mm	560X640X420mm	560X640X420mm	740X660X310mm
WEIGHT	35Kg	50Kg	60Kg	70Kg
POWER SUPPLY	230V 50-60Hz – 2A	230V 50-60Hz – 2A	230V 50-60Hz – 2A	230V 50-60Hz – 2A

Oprtional for Pilling Test:
– Set 6×4 photographs for determining the degree of pilling, according to SN-EN-ISO 12945-2: wovens and knits
– set 3×4 photographs for determining the degree of pilling, according to SN-EN-ISO 12945-2, wovens only
– set 3×4 photographs for determining the degree of pilling, according to SN-EN-ISO 12945-2, knits only

Optional:
– Circular sample cutter (available in diam. 38, diam. 90 and diam. 140mm)
– O-ring pilling insert tool
